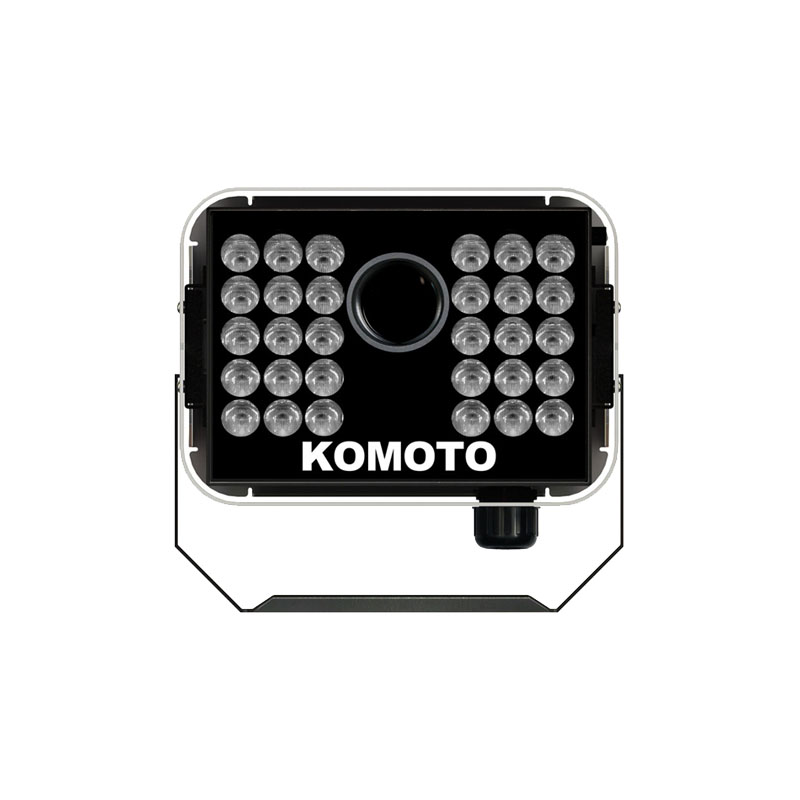

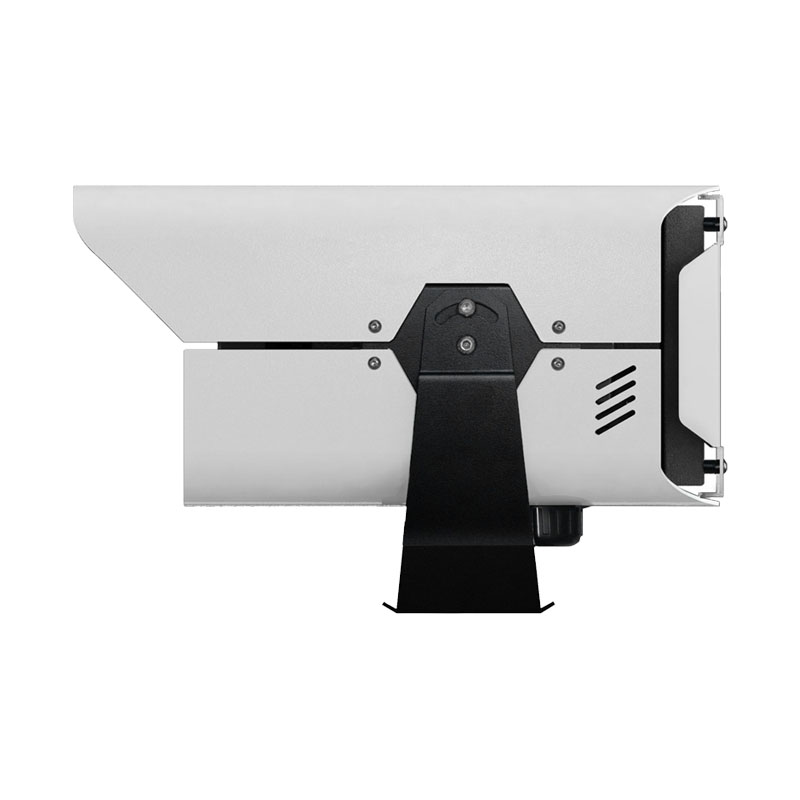

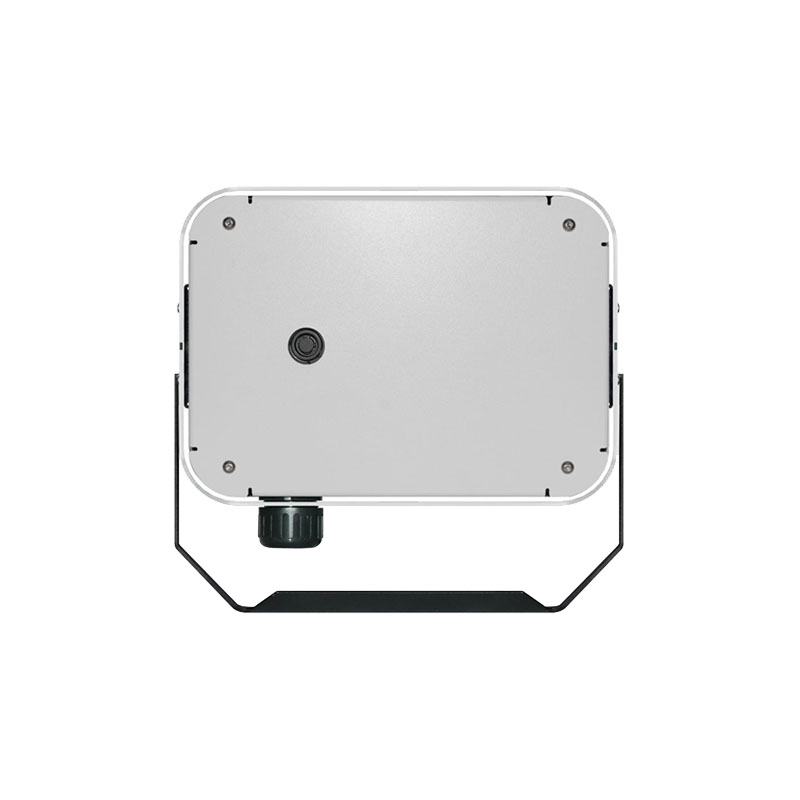

CW7S

Composited Traffic Device

Features:

v   Composite design for various applications.

v   Support holder for Embedded, Antenna, Camera & Lens.

v   Negative Pressure design to avoid the oil and dust pollution.

v   Rotation Angle design to avoid the horizontal problem.



Applications:

v   Speed enforcement

v   Automatic number plate recognition

v   Traffic integrated device

v   Red light violation

v   Weigh in motion





Item Number

CW7S

CW7S_20

CW7S_30

CW7S_D

Product’s Name

Integrated Traffic Device

Wavelength (nm)

5700-6500K

Illumination Source (LEDs.)

Latest High Power Technology LEDs

Distance

15-30 (ANPR mode)

Trigger Modes

Trigger Mode (Flashes upon input pulse)

Minimum Repeat Time

30us

Maximum Pulse Width

Full Strobe 0.1-1.6ms/ Strobe+PWM 0.1-6ms

Trigger input

DC3.3V to 24V opto-isolated

Control/ Communication

RS485

Beam Angle

10

20

30

H40xV15

Operating Temperature (°C)

-20~+60 degree

Power Requirement (Volt)

DC 24 to 48V @60W

Weather Proof

IP66

Dimension (L x W x H mm)

(L)245x (W)306 x (H)232 mm

Net Weight (Kgs)

5 Kgs

Gross Weight (Kgs)

6.5 Kgs
