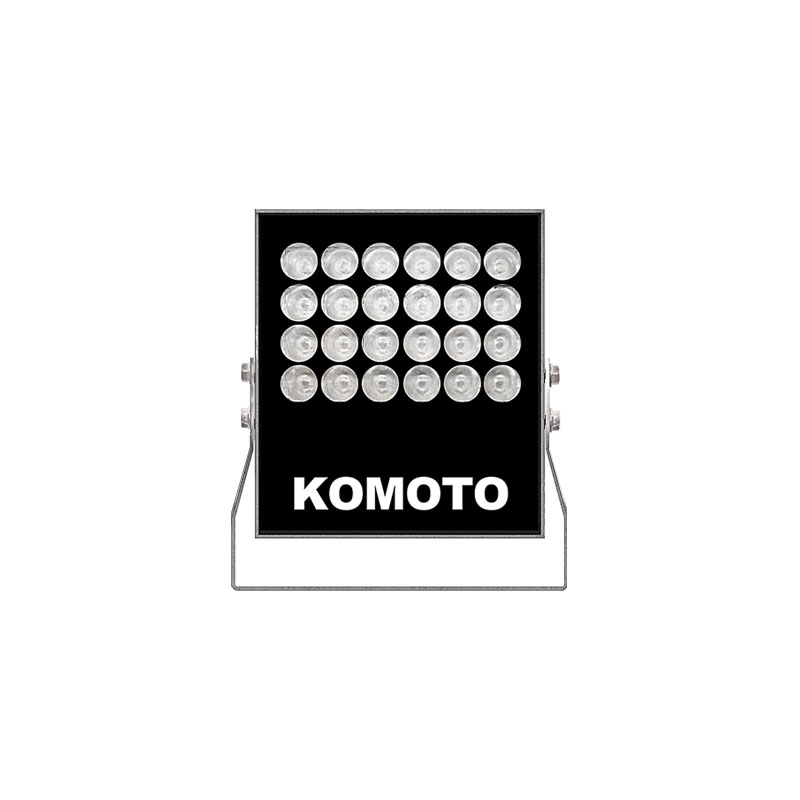

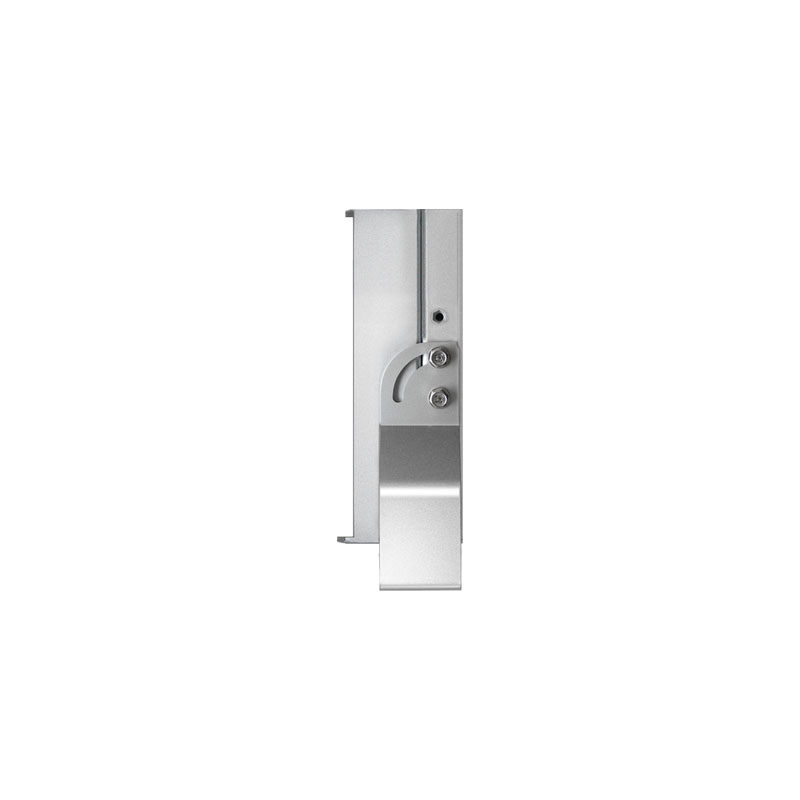

KX1

DC Illuminator

Features:

v   Super long range up to 300m.

v   IP66 enclosure for outdoor installation.

v   Compact LED Light source.

v   Ultra high power-low urnning cost.

v   Automatic Day/Night switch.



Applications:

v   Where light conditions are less than optimal.



Specification

Item Number

KX1_10

KX1_20

KX1_30

KX1_D

KX1_60

Product’s Name

DC Illuminator

Wavelength

Warm White, 3000K

Illumination Source

Latest High Power Technology LEDs

Distance

80m

60m

35m

50m

25m

Material

Aluminum

Beam Angle (degree)

10

20

30

H40x15

60

Active Switch On

Controlled by built-in photocell
Trigger Input: DC3.3V to 24V opto-isolated

ICR Switching

Trigger output: Provide DC12V drive power

Power Consumption

50W

Power Requirement

DC12~30V

Operating Temperature (°C)

-20~+60 degree (cold start at -40 degree)

Operating Humidity

20%~90% RH

Weather Proof

IP66

Net Weight

2.0 Kgs

Gross Weight

2.5 Kgs (5m cable included)
