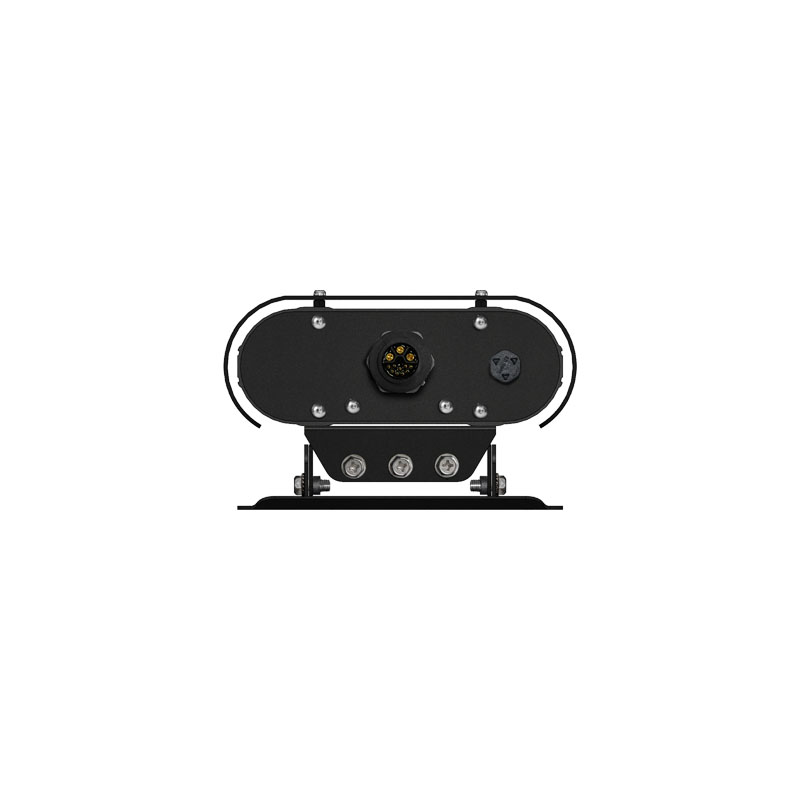

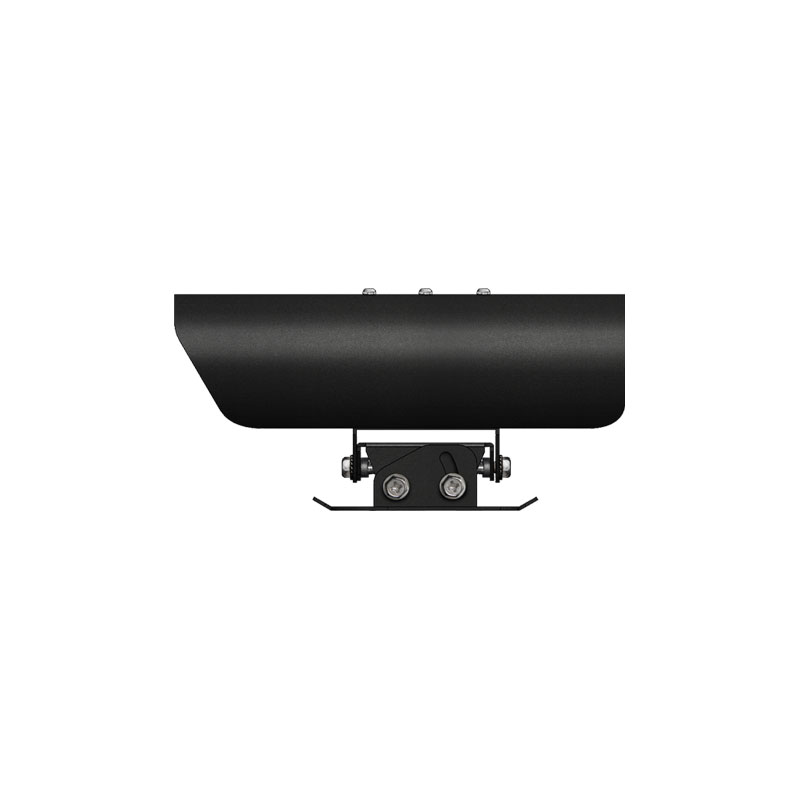

M6D
Features:
v Support any machine vision camera into ITS applications.
v GigE vision composite cable with waterproof connector.
v Wide Range Power input from 10~30 VDC.
v Anti-Vibration: 5Hz~500Hz/ 1Grms/ 3Axis.
v Anti-Shock: 15G, 11ms duration.
Applications:
v Mobility and boat
v Automatic number plate recognition
v Traffic integrated device
Item Number | M6D_10 | M6D_20 | M6D_30 | M6D_D |
Product’s Name | Mobility Traffic Device | |||
Wavelength (nm) | 850nm | |||
Illumination Source (LEDs.) | Latest High Power Technology LEDs | |||
Lane Coverage | 10~20M | 10~15M | 10~10M | 10~15M |
Light Drive Power- Pulsed (watt) | 240W | |||
Trigger Modes | A. Strobe combine with continuous limit pulse B. Auto detect trigger width | |||
MAX. Trigger Frequency (kHz) | 10 kHz | |||
MAX. Pulse Width (ms.) | 0.1~6.0 ms | |||
Trigger Input- opto-isolated (volt) | DC 3.3 to 24V opto-isolated | |||
Beam Angle | 10 | 20 | 30 | H40xV15 |
Control Communication | RS485 interface | |||
Operating Temperature (°C) | -20~+60 degree (cold start at -40 degree) | |||
Weather Proof | IP66 | |||
Power Requirement (Volt) | DC12-30V @30W(Max.) | |||
