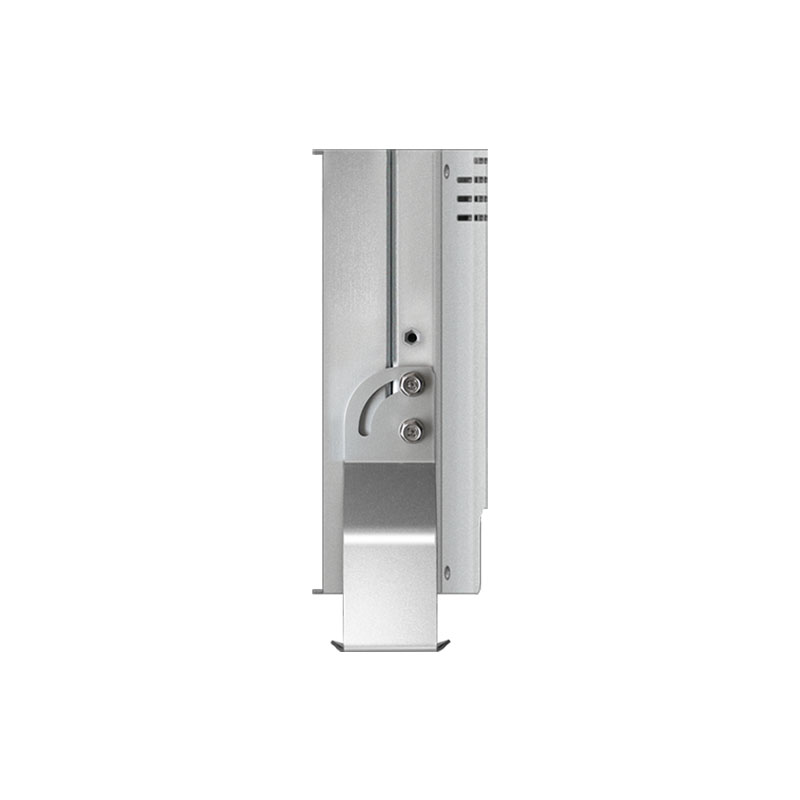

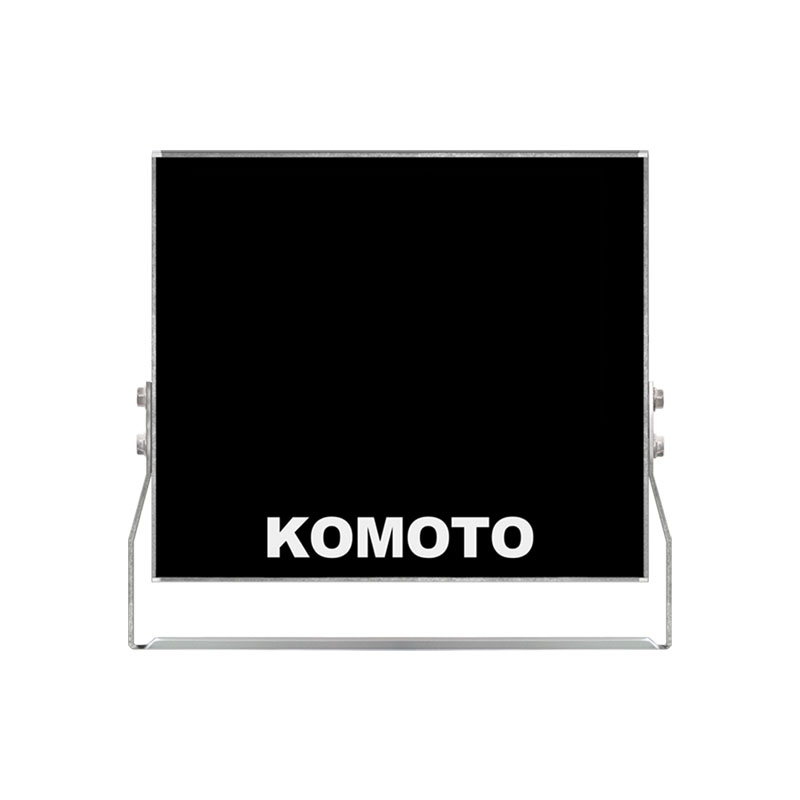

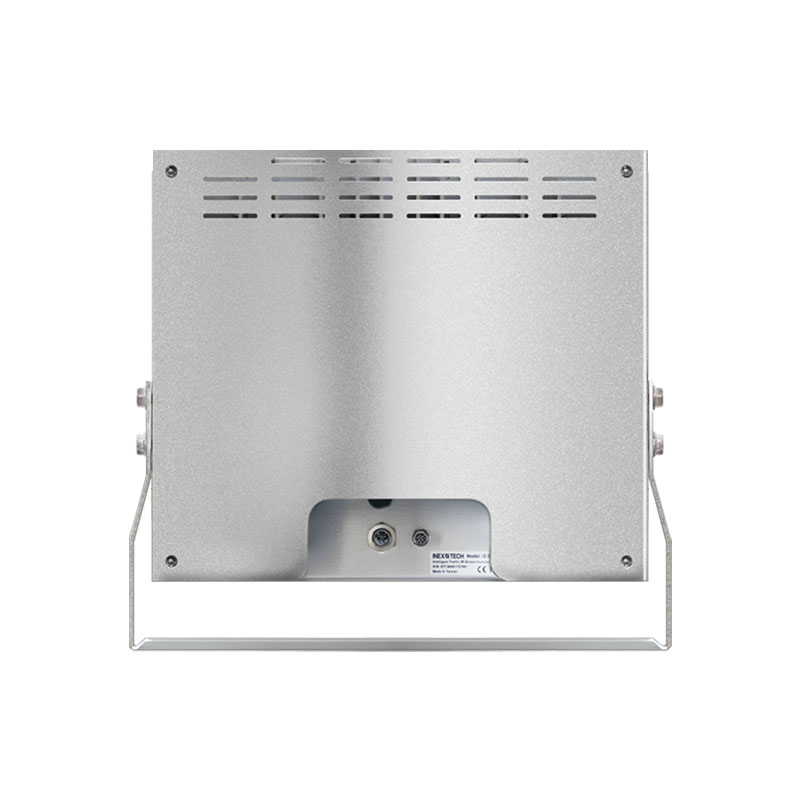

S2-N

Intelligent Traffic IR Strobe

Features:

v   Compact with Integrated LED Light Source.

v   Auto detects the trigger width with flash duation.

v   Stack effect Design for more efficiency by reducing heat.

v   Extra long life with very low maintenance.

v   IP66 housing for outdoor installation.



Applications:

v   Traffic speed management

v   Speed enforcement

v   Vehicle type identification

v   Automatic number plate recognition

v   Rail container scanning

v   Toll management systems

v   Weigh in motion







Item Number

S2_10-N

S2_20-N

S2_D-N

S2_D_E-N

Product’s Name

Intelligent Traffic IR Strobe

Wavelength

NIR 850 nm

Illumination Source

Latest High Power Technology LEDs

Light Drive Power-Pulsed

1200W

IR Effective Range

30 to 40m (ANPR Model)

Trigger Modes

1. Simple Mode (Strobe combine with continuous limit pulse)

2. Intelligent Mode (Trigger width = Flash width)

3. C.C.S. (Continued Combine Strobe)

Max. Trigger Frequency

10 kHz

Max. Pulse Width

0.1-1.6ms

Trigger input opto isolated

DC3.3V to 24V opto-isolated

Beam Angle (Degree)

10

20

H40xV15

H60xV40

Control/ Communication

RS485 interface

Operating Temperature (°C)

-25~+60 degree (cold start at -40 degree)

Weather Proof

IP66

Power comsumption

30W

Power Requirement

DC12~24V / 2.5A

Dimension

(L)296x (W)271 x (H)91 mm

Net Weight

3.6 Kgs

Gross Weight

4.1 Kgs
